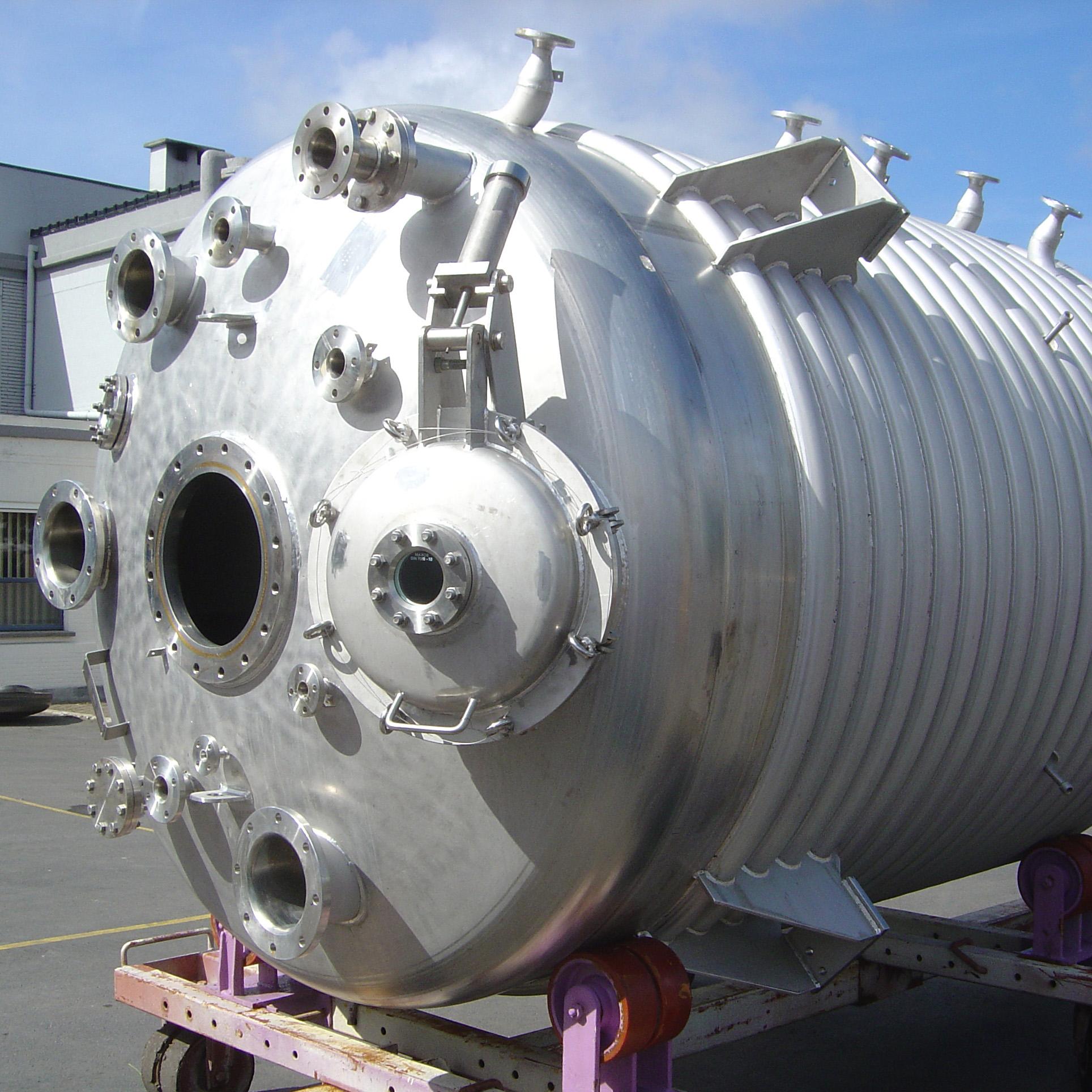

Reactor on brackets

Reactor 8000 liters.

Material: INOX 316 L
Diameter: 2500 mm
Height: 3000 mm
Thickness: 8 mm
Pressure: -1/+3 barg
Weight: 5000 kg
Equipped with central agitator
